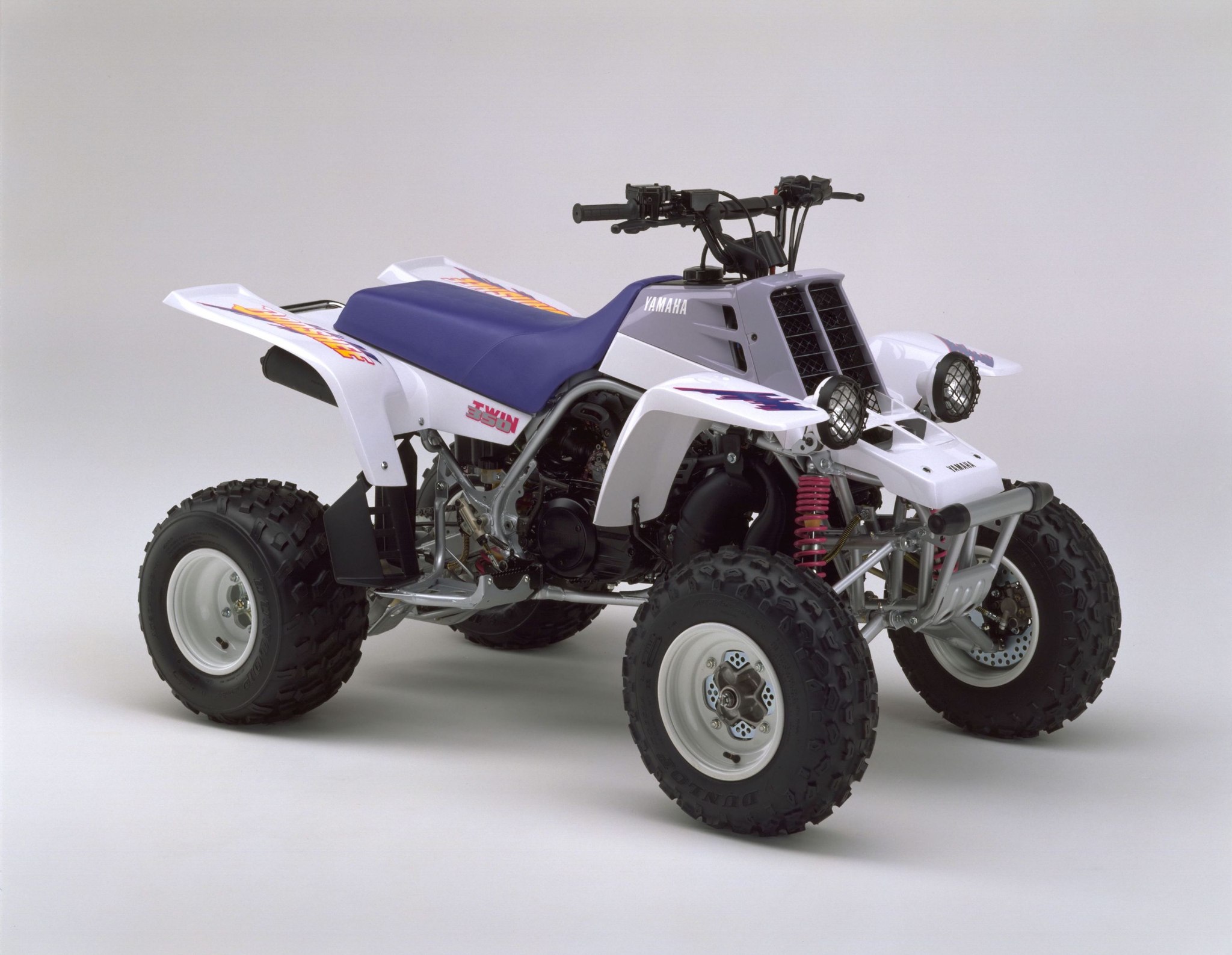

1993 YAMAHA BANSHEE 350

The 1993 Yamaha Banshee 350 is a high-performance ATV with the following features:

Engine:

– 349cc, 2-stroke, twin-cylinder
– Power Output: 40 HP (29.4 kW) @ 7,500 rpm
– Torque: 25.7 lb-ft (34.8 Nm) @ 6,500 rpm
– Carburetion: Twin 26mm Mikuni carburetors
– Ignition: Digital CDI

Transmission:

– 6-speed manual with reverse
– Chain drive

Suspension:

– Front: Independent double-wishbone with hydraulic shocks
– Rear: Swingarm with hydraulic shocks

Brakes:

– Front: Dual hydraulic discs
– Rear: Single hydraulic disc

Chassis and Dimensions:

– Frame: Steel frame with aluminum swingarm
– Length: 73.8 in (187.5 cm)
– Width: 43.3 in (110 cm)
– Height: 42.5 in (108 cm)
– Wheelbase: 50.4 in (128 cm)
– Ground Clearance: 7.3 in (18.5 cm)

Wheels and Tires:

– Front: 21×7-10
– Rear: 20×10-9

Weight and Capacity:

– Dry Weight: 367 lbs (166.5 kg)
– Seat Height: 29.5 in (75 cm)
– Fuel Capacity: 3.2 gal (12.1 L)
– Oil Capacity: 1.2 qt (1.1 L)

Other Features:

– Electric start with recoil backup
– Hydraulic disc brakes
– Independent suspension
– Adjustable suspension preload
– Aluminum swingarm

Colors:

– Blue/White
– Red/White
– Yellow/Black

– Updated graphics and decals
– Revised suspension settings
– Improved brake performance
– New seat design.
